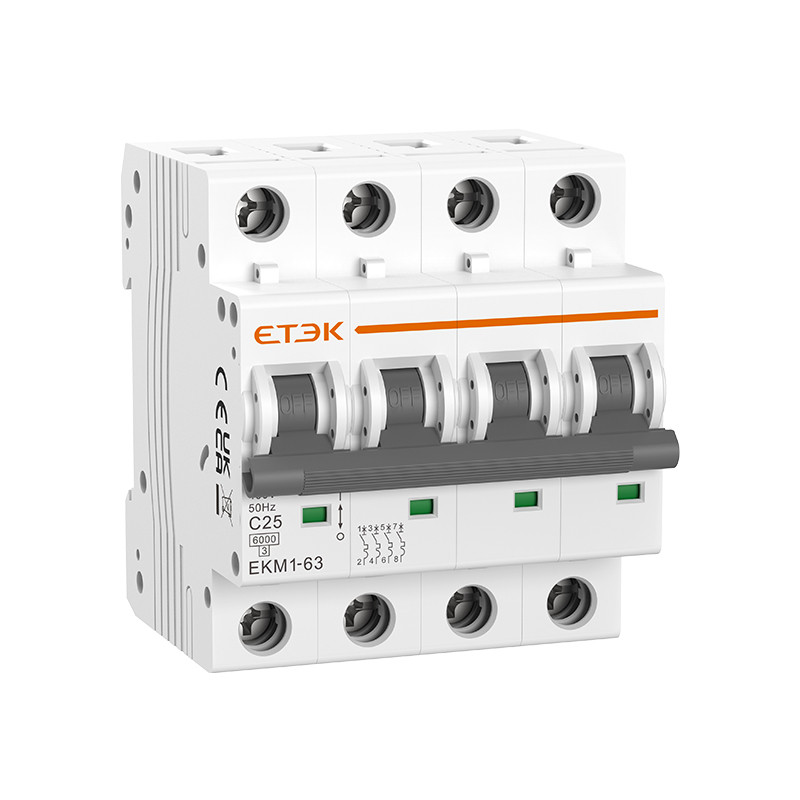

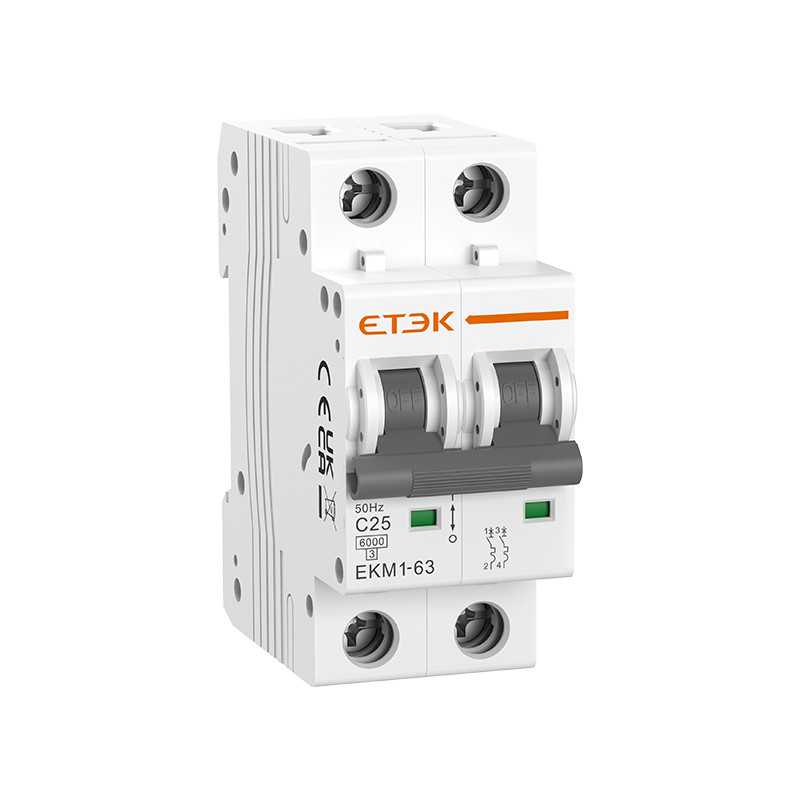

EKM1-63H MCB 10kA Miniature Circuit Breaker

EKM1-63H 10kA MCB breaker is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings etc.

● Standard: IEC60898-1
● Type of trip: Thermo-magnetic
● Rated current: 63A
● Rated voltage: 230/400V~240/415V
● Number of poles: 2P,4P
● Rated short-circuit breaking capacity: 10kA
● Tripping curve: C
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CB, CE, TUV

Ampere Rating:

63A

Poles:

Weight : 0.40 KG

In Stock

Buy Now

Related Product

View All

Technical Data

Standard	IEC/EN60898-1
Protection	Overcurrent and short circuit
Type of trip	Thermo-magnetic
Rated Current In	1,2,3,4,5,6,10,16,20,25,32,40,50,63A
Poles	1P, 1P+N, 2P, 3P, 3P+N,4P
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	10,000A
Energy limiting class	3
Rated impulse withstand voltage (1.2/50) Uimp	4,000V
Dielectric test voltage at ind. Freq. for 1 min	2kV
Thermal release characteristic	(1.13-1.45) x In
Magnetic release characteristic	B:(3-5) x In, C:(5-10) x In, D:(10-20) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature (with daily average≤35℃)	-5℃~+40℃, Max.95%humidity
Terminal connection type	Cable/Pin-type busbar/Fork-type busbar
Max. terminal size for cable	25mm2
Max. Tightening torque	2.5Nm
Mounting	Mounting on 35mm DIN rail
Connection	From top and bottom
